I N S T A L L A T I O N I N S T R U C T I O N S
Continued. . .
MODEL: HB-107B Custom Projector Bracket
Unpack carton and verify contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
PARTS
Figure 1
INSTALLATION
WARNING: IMPROPER INSTALLATION MAY RESULT IN SERIOUS PERSONAL INJURY! All components must be securely fastened
to each other and to the ceiling, and the ceiling must be capable of supporting five times the total weight of the installation.

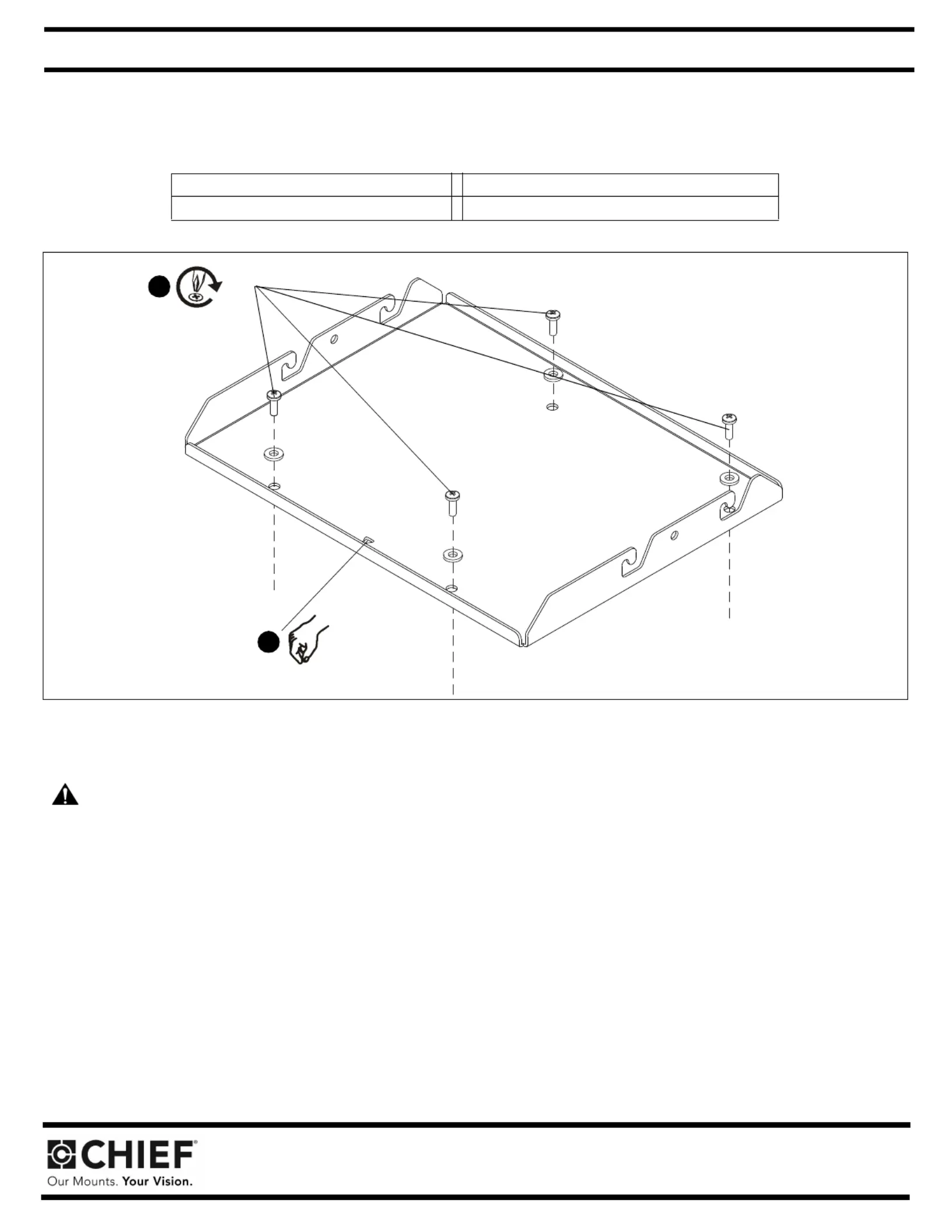

1. Lower custom HB bracket onto top of projector. Ensure that triangle in bracket points toward front of projector. (See Figure 1)
2. Attach HB bracket to projector using four M8 x 16mm Phillips pan head screws through four holes in the HB bracket. (See Figure 1)
(1) BRACKET, Custom HB (4) WASHER, Flat, M8
(4) NUT, Flange, Hex, 5/16-18 (4) SCREW, Phillips Pan Head, M8 x 16mm
1
2
x 4
