Thank you very much for using SUNX products.
Please read this Instruction Manual carefully and
thoroughly for the correct and optimum use of this
product. Kindly keep this manual in a convenient
place for quick reference.
CAUTIONS
2
٨
٨
٨
٨
٨
٨
٨
٨
٨
٨
٨
٨
٨
٨
Make sure that the power supply is off while
wiring.
Take care that wrong wiring will damage the
sensor.
Verify that the supply voltage variation is within
the rating.
If power is supplied from a commercial switch-
ing regulator, ensure that the frame ground
(F.G.) terminal of the power supply is connect-
ed to an actual ground.
In case noise generating equipment (switching
regulator, inverter motor, etc.) is used in the vicini-
ty of this product, connect the frame ground (F.G.)
terminal of the equipment to an actual ground.
Do not run the wires together with high-voltage
lines or power lines or put them in the same race-
way. This can cause malfunction due to induction.
Extension up to total 100m, is possible with
0.3mm2, or more, cable. However, in order to re-
duce noise, make the wiring as short as possible.
Do not use during the initial transient time
(50ms) after the power supply is switched on.
Take care that the sensor is not directly exposed
to fluorescent lamp from a rapid-starter lamp, a
high frequency lighting device or sunlight etc., as
it may affect the sensing performance.
Avoid dust, dirt, and steam. Do not use it in
places having excessive vapor, dust, etc., or
where it may come in direct contact with
corrosive gas.
Take care that the sensor does not come in di-
rect contact with water, oil, grease, organic sol-
vents, such as, thinner etc., or strong acid, and
alkaline.
Make sure that stress by forcible bend or pulling
is not applied directly to the sensor cable joint.
Since the cable end is not waterproof, do not
use the sensor in the application where water
may seep in from the cable end.
When connecting the mating cable to the
connector type sensor, the tightening torque
should be 0.4N㨯m or less.

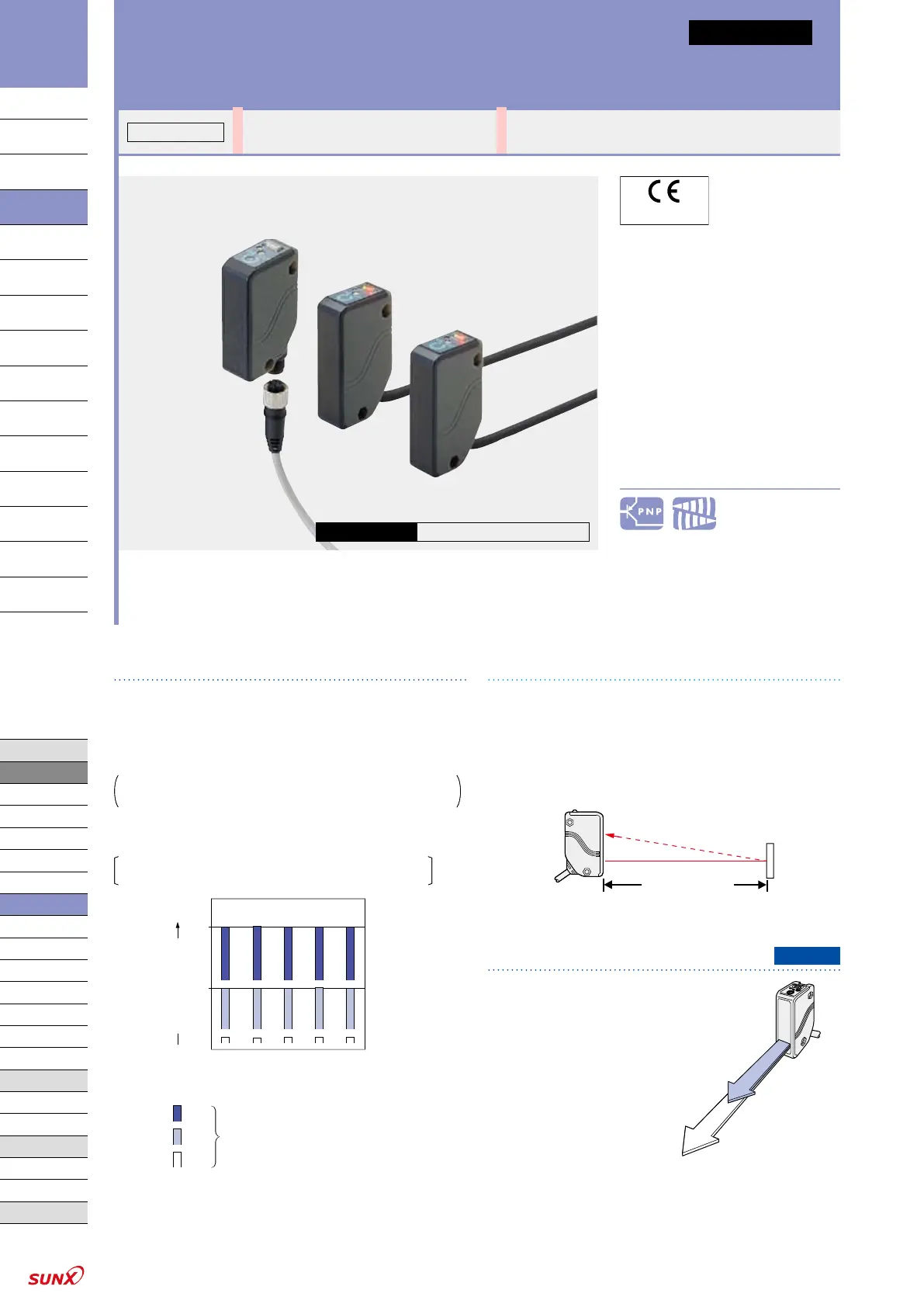

INSTRUCTION MANUAL
EQ-30 Series
Adjustable Range Reflective
Photoelectric Sensor
SPECIFICATIONS1
NPN open-collector transistor
Maximum sink current: 100mA
Applied voltage: 30V DC or less
(between output and 0V)
Residual voltage: 1V or less
(at 100mA sink current)
0.4V or less
(at 16mA sink current)
PNP open-collector transistor
Maximum source current: 100mA
Applied voltage: 30V DC or less
(between output and +V)
Residual voltage: 1V or less
(at 100mA source current)
0.4V or less
(at 16mA source current)
<Far (Main) output, Near (Sub) output>
NPN open-collector transistor
Maximum sink current: 100mA
Applied voltage: 30V DC or less
(between output and 0V)
Residual voltage: 1V or less
(at 100mA sink current)
0.4V or less
(at 16mA sink current)
90mA or less55mA or less50mA or less
0.1 to 2m
Far (Main): 0.1 to 2m
Near (Sub): 0.2 to 2m
[with Near (Sub) distance for adjuster at max.]
Output
Current consumption
Hysteresis 10% or less of operation distance
0.2 to 2m Far (Main): 0.2 to 2m
Near (Sub): Refer to diagram in (Note 3)
EQ-34
EQ-34-PN
EQ-34W
NPN output type PNP output type Two outputs type
Model No. (Note 1)
Type
Item
Adjustable range (Note 2)
Adjustable range reflective
10 to 30V DC Ripple P-P 10% or lessSupply voltage
Sensing range
with white non-glossy paper
at setting distance 2m
Red LED (lights up when the output is ON)
Far (Main) output: Red LED
[lights up when the Far (Main) output is ON]
Near (Sub) output: Red LED
[lights up when the Near (Sub) output is ON]
Operation indicator
Switchable either Detection-ON or Detection-OFF
Incorporated
Output operation
Short-circuit protection
2ms or lessResponse time
Far (Main): 2-turn mechanical ad-
juster with pointer
Near (Sub): Variable adjuster
Green LED (lights up under stable light received condition or stable dark condition) (Note 4)Stability indicator
2-turn mechanical adjuster with pointerDistance adjuster
Cable 0.3mm
23-core cabtyre cable, 2m long
0.3mm
2
4-core cabtyre cable, 2m long
2-segment photodiodeReceiving element
Adjusting screwdriver: 1pc.Accessory
Infrared LED (modulated)
Enclosure: Polyalylate and Polyethylene terephthalate, Lens: PolyalylateMaterial
IP67 (IEC)Protection
-20 to +55 (No dew condensation or icing allowed), Storage: -25 to +70Ambient temperature
35 to 85% RH, Storage: 35 to 85% RHAmbient humidity
Emitting element
Incorporated (Two units of sensors can be mounted close together.)
Automatic interference
prevention function
150g approx.Weight
Notes: 1) The model No. with suffix ' ' stands for the connector type. ( is excluded.)-J EQ-34W
(e.g.) As for the connector type of ' 'EQ-34 EQ-34-J
Use the mating cables as shown below.
CN-24L-C2 (Elbow type, 4-core, 2m)
CN-24L-C5 (Elbow type, 4-core, 5m)
CN-24-C2 (Straight type, 4-core, 2m)
CN-24-C5 (Straight type, 4-core, 5m)
4) Refer to ' ' for the details of the stability indicator.STABILITY INDICATOR
6
2)
The model No. with suffix ' ' stands for the 5m cable length type. ( is excluded.)-C5 EQ-34-PN
(e.g.) As for the 5m cable length type of EQ-34 'EQ-34-C5'
The adjustable range stands for the maximum sensing range which can
be set with the adjuster. The sensor can detect an object 0.1m, or more,
away. However, the detectable area of the Near (Sub) type of the
EQ-34W begins at 0.2m. 0.2m
0.1m
2m
Non-detectable range
Actual sensing
range of the sensor
Adjustable range
Sensing
object
3)
The Near (Sub) distance adjustable range, L , changes with the setting of the Far (Main) distance, L , as shown in the table below.2 1
EQ-34W Near (Sub) distance adjustable range
EQ-34W
Far (Main) setting distance L1Near (Sub) distance
adjustable range L
2
2m 1 to 2m
0.2m 0.2m
1.5m 0.85 to 1.5m
1m 0.65 to 1m
0.5m 0.35 to 0.5m
0 0.5 1 1.5 2
2
1.5
1
0.5
Far (Main) setting distance L1(m)
Near (Sub) distance
adjustable range
L2(m)
٨
٨
Never use this product as a sensing device for personnel protection.
In case of using sensing devices for personnel protection, use products which meet
standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in
each region or country.
WARNING
MOUNTING3
٨The tightening torque should be 0.8N㨯m or
less.
M4 nut
M4 (length 25mm)
screw with washers
Sensor
mounting
bracket
MS-EQ3-2
(Optional)
٨Care must be taken regarding the sensor
mounting direction with respect to the object's
direction of movement.
Do not make the sen-
sor detect an object
in this direction be-
cause it may cause
unstable operation.
Sensing object
No good
Sensing object
Good
Sensing object
Good
٨
٨
When detecting a specular object (aluminum or
copper foil, etc.) or an object having a glossy
surface or coating, please take care that there
are cases when the object may not be detected
due to a small change in angle, wrinkles on the
object surface, etc.
When a specular body is present below the
sensor, use the sensor by tiling it slightly up-
wards to avoid wrong operation.
Specular face
No good
Tilt
Good
Specular face
