RC4WD Z-E0118 Handleiding
Hier is de RC4WD Z-E0118 (Radiografisch bestuurbaar speelgoed) gebruikershandleiding. 4 pagina's in taal Engels met een gewicht van 0.6 Mb. Als u geen antwoorden op uw probleem kunt vinden Vraag het onze community.
Pagina 1/4
1
1/10th Crawler - 1/10 buggy or truggy - 1/10 on-road
Motor Limit with 3S LiPo / 9S NiMH: 16T or RPM < 20,000 @7.4V
Motor Limit with 2S LiPo / 6S NiMH: 12T or RPM < 30,000 @7.4V
Z-E0118
for 540 / 550 / 775 size motors
80A / 400ACont. / Peak Current
Motor Type
Applications
540/550/590 size motors
540/550/590 size motors
LiPo / NiMH Cells
BEC Output
Size / Weight
Programming Port
Motor
Limit
Brushed Electronic Speed Controller
2 - 3S LiPo / 5-9 NiMH
6V / 7.4V @ 8A (Switch-mode)
50.0 x 42.9 x 26.5 mm / 58.5g
Separate Port / Fan power supply
SPECIFICATIONS

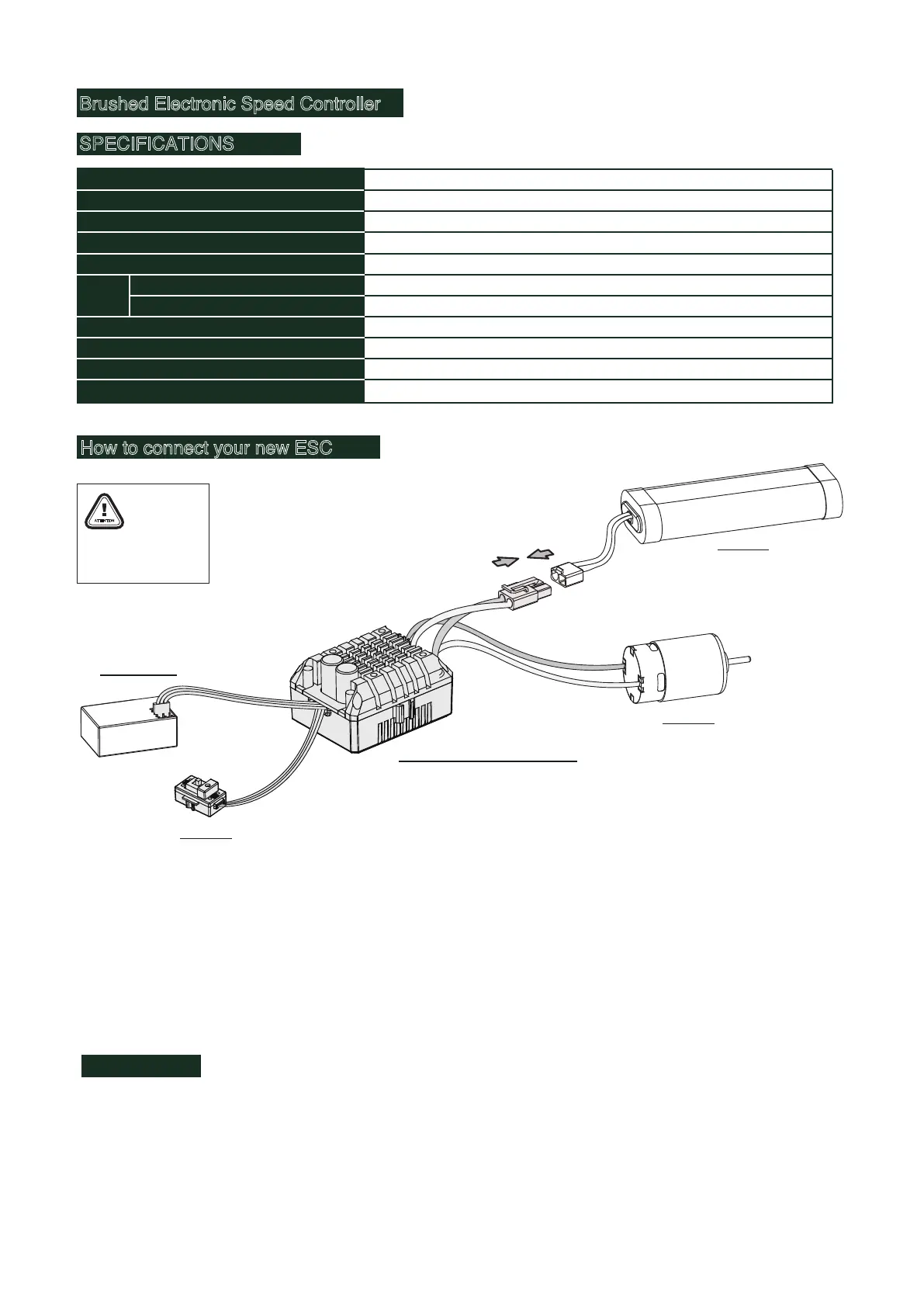

How to connect your new ESC
Model
Type Outcry Extreme Speed Controller ESC
S tchwi
Battery
Motor
Receiver
Electronic Speed Controller
ATTENTION
For your safety and the safety
of those around you, please
turn on the the ESC with the
wheels off the ground!
• Motor Wiring:
There is no polarity on the M+/M- two ESC-to-motor wires, hence, do not worry on how you connect them initially. You may
find it necessary to swap two wires if the motor runs in reverse.
• Receiver Wiring:
Plug the throttle control cable on the ESC into the throttle (TH) channel on receiver. The throttle control cable will output the
voltage of 6V/7.4V to the receiver and steering servo. Hence, no separate battery can be connected to the receiver.
Otherwise, your ESC may be damaged.
• Battery Wiring:
Proper polarity is essential. Please ensure positive (+) connects to positive (+), and negative (-) connects to negative (-)
when plugging in the battery! When reverse polarity is applied to your ESC from the battery, it WILL damage your ESC.
This WILL NOT be covered under warranty!
Features
Features
•Water-proof and dust-proof design, suitable for all-weather.
•Built-in powerful switch-mode BEC. The continuous current reaches 8A and the instantaneous current reaches 10A, with
switchable voltage of 6V/ 7.4V, makes it easy to use all kinds of high torque and high voltage servos.
•Tunable drag brake and drag brake rate for different vehicles and driving technique. •Proportional brake: 9 levels of initial
brake force, 9 levels of maximum brake force, 9 levels of drag brake force.
•Multiple protection functions: low voltage protection, over-temperature protection.
•Independent program card connector: It is more convenient to connect the program card without unplugging the ESC from
the receiver.
