Samsung HG43Q60AANF Handleiding
Hier is de Samsung HG43Q60AANF (Niet gecategoriseerd) gebruikershandleiding. 2 pagina's in taal Engels met een gewicht van 1.1 Mb. Als u geen antwoorden op uw probleem kunt vinden Vraag het onze community.

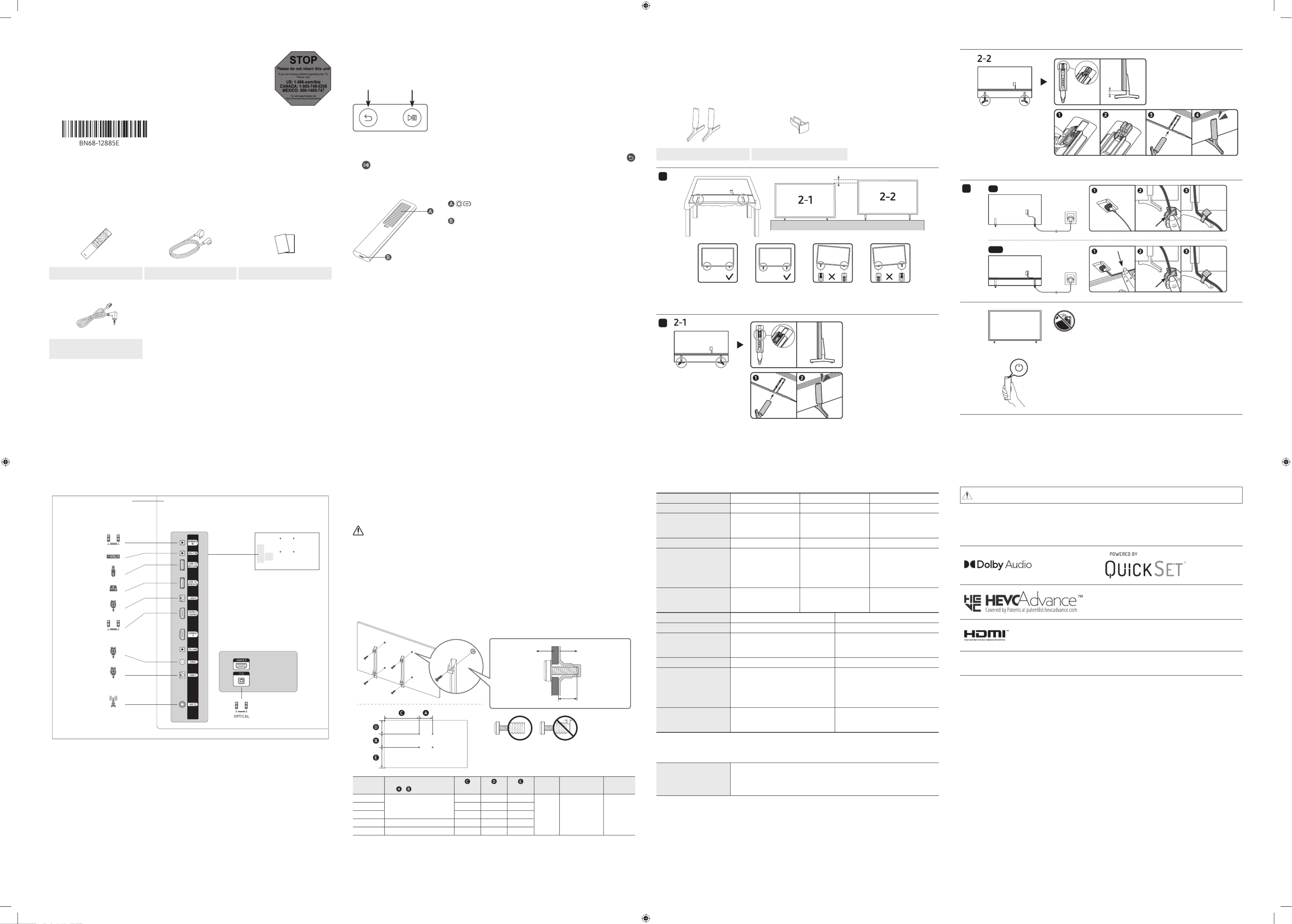

Pagina 1/2
5. Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall, perpendicular to the floor. When attaching to other building materials, please contact your
nearest dealer. If installing on a ceiling or slanted wall, TV may fall and result in severe personal injury.
•Standard dimensions for wall mount kits are shown in the table below.
•Samsung wall mount kits contain a detailed installation manual. All parts necessary for assembly are provided.
Do not install your wall mount kit while your TV is turned on. This may result in personal injury from electric shock.
•Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications.
Screws that are too long may cause damage to the inside of the TV set.
•For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending
on the wall mount specifications.
•Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
•Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or when the
consumer fails to follow the product installation instructions.
•Do not mount the TV at more than a 15 degree tilt.
•Always have two people mount the TV onto a wall.
Wall mount
bracket
TV
C
TV size in
inches
VESA screw hole specs
( * ) in millimeters
( )inches
( )inches
( )inches C ( Standard Screwmm) Quantity
43
200 x 200
15.0 7.4 6.6
11-13 M8 4
50 18.0 8.1 9.3
55 20.2 10.69.3
65 400 x 300 20.6 10.3 10.5
75 11.8400 x 400 25.0 10.1
1. List of Parts
•The provided accessories may vary depending on the model.
123
Samsung Smart Remote Power Cord Quick Setup Guide / Regulatory Guide
4
Data Cable x 2
(Depending on the model)
4. Viewing the Connection Panel
HDD
ARC
ANT IN
USB
LAN
LAN
Volume Control Box
SPEAKER
O
DATA
BACK OF TELEVISION
ARRIÈRE DU TÉLÉVISEUR
PARTE TRASERA DEL TELEVISOR
* EX-LINK :
Dedicated to service technicians.
Réservé aux techniciens de service.
Exclusivo para los técnicos.
2. The Samsung Smart Remote
Pairing the TV to the Samsung Smart Remote
When you turn on the TV for the first time, the Samsung Smart Remote pairs to the TV automatically. If the Samsung Smart Remote
does not pair to the TV automatically, point it at the remote control sensor of the TV, and then press and hold the buttons labeled
and as shown in the figure on the left simultaneously for 3 seconds or more.
Charging the battery
Solar Cell
When exposed to light (indoor light), the battery is charged.
USB port (C-type) for charging
The LED lights while charging. When fully charged, the LED turns off.
•The USB Cable is not provided.
– It is recommended to use an original Samsung charger. Otherwise, it may cause performance degradation or failure of the
product. In this case, the warranty service is not applicable.
– When the remote control does not work due to low battery, charge it by using the USB-C type port.
6. Specifications
Model Name HG43Q60A HG50Q60A HG55Q60A
Display Resolution 3840 x 2160 3840 x 2160 3840 x 2160
Screen Size
Diagonal
Measured Diagonally
43˝ Class
42.5 inches
50˝ Class
49.5 inches
55˝ Class
54.6 inches
Sound (Output) 20 W 20 W 20 W
Dimensions (W x H x D)
Body
With Stand
38.0 x 22.0 x 1.0 inches
(965.5 x 559.8 x 25.7 mm)
38.0 x 23.6 x 8.1 inches
(965.5 x 599.8 x 205.6 mm)
44.0 x 25.4 x 1.0 inches
(1118.3 x 644.5 x 25.7 mm)
44.0 x 26.9 x 9.0 inches
(1118.3 x 683.6 x 228.8 mm)
48.5 x 27.9 x 1.0 inches
(1232.1 x 708.8 x 25.7 mm)
48.5 x 29.4 x 9.0 inches
(1232.1 x 747.8 x 228.8 mm)
Weight
Without Stand
With Stand
18.5 lbs (8.4 kg)
19.6 lbs (8.9 kg)
25.4 lbs (11.5 kg)
26.9 lbs (12.2 kg)
34.2 lbs (15.5 kg)
35.7 lbs (16.2 kg)
Model Name HG65Q60A HG75Q60A
Display Resolution 3840 x 2160 3840 x 2160
Screen Size
Diagonal
Measured Diagonally
65˝ Class
64.5 inches
75˝ Class
74.5 inches
Sound (Output) 20 W 20 W
Dimensions (W x H x D)
Body
With Stand
57.1 x 32.7 x 1.0 inches
(1450.9 x 831.8 x 25.7 mm)
57.1 x 34.3 x 11.1 inches
(1450.9 x 871.0 x 281.8 mm)
66.0 x 37.8 x 1.0 inches
(1676.7 x 960.3 x 26.6 mm)
66.0 x 39.6 x 13.4 inches
(1676.7 x 1005.5 x 340.4 mm)
Weight
Without Stand
With Stand
46.1 lbs (20.9 kg)
48.1 lbs (21.8 kg)
70.8 lbs (32.1 kg)
73.4 lbs (33.3 kg)
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
50 °F to 104 °F (10 °C to 40 °C)
10 % to 80 %, non-condensing
-4 °F to 113 °F (-20 °C to 45 °C)
5 % to 95 %, non-condensing
•Design and specifications are subject to change without prior notice.
•This device is a Class B digital apparatus.
•For information about the power supply, and more information about power consumption, refer to the information on the label
attached to the product.
– On most models, the label is attached to the back of the TV. (On some models, the label is inside the cover terminal.)
•Your TV and its accessories may look different than the product images presented in this manual, depending on the model.
•All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions
before installing your TV. Not responsible for typographical or printed errors.
State of California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
7. Licenses
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
in the United States and other countries.
Open Source License Notice
Open Source used in this product can be found on the following webpage. (https://opensource.samsung.com)
3. Installing the LED TV Stand
Assembling the Stand and Components
When installing the stand, use the provided components and parts.
Stand Holder-Cable
10.98 inches mm (25 )
•Place a soft cloth over the table to protect the TV, and then place the TV so that its screen faces down toward the table
surface.
•Insert the Stands into the slot on the bottom of the TV.
•Slide and assemble it to the end line in the direction of arrow.
343″
50-75″
NOTE
•Make sure to distinguish between the front and back of each component when assembling them.
•Make sure that at least two persons lift and move the TV.
Quick Setup Guide
STOP
Please do not return this unit
If you are having problems operating this TV,
Please call;
US: 1-866-sam4biz
CANADA: 1-800-749-0205
MEXICO: 800-1488-747
For web support please visit
https://www.samsung.com/us/business
Guide d'installation rapide
Guía de configuración rápida
To register this product please visit www.samsung.com
-01
2
Probleemoplossing Samsung HG43Q60AANF
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Gewicht verpakking: | 12100 g |
| Breedte verpakking: | 1093 mm |
| Diepte verpakking: | 129 mm |
| Hoogte verpakking: | 677 mm |
| Bluetooth: | Ja |
| Automatisch uitschakelen: | Ja |
| Beeldschermdiagonaal: | 43 " |
| Resolutie: | 3840 x 2160 Pixels |
| Wi-Fi-standaarden: | Wi-Fi 5 (802.11ac) |
| Ethernet LAN: | Ja |
| Kijkhoek, horizontaal: | 178 ° |
| Kijkhoek, verticaal: | 178 ° |
| Meegeleverde kabels: | AC |
| Aantal USB 2.0-poorten: | 2 |
| Aantal HDMI-poorten: | 3 |
| Aantal Ethernet LAN (RJ-45)-poorten: | 1 |
| Smart TV: | Ja |
| Gemiddeld vermogen: | 20 W |
| Stroomverbruik (in standby): | 0.5 W |
| Vermogensverbruik (max): | 115 W |
| Aantal luidsprekers: | 2 |
| High Dynamic Range (HDR)-technologie: | High Dynamic Range 10+ (HDR10 Plus),Hybrid Log-Gamma (HLG),Quantum HDR |
| HDR-ondersteuning: | Ja |
| HD type: | 4K Ultra HD |
| Display technologie: | QLED |
| VESA-montage: | Ja |
| Paneelmontage-interface: | 100 x 100 mm |
| Diepte ( zonder voet ): | 25.7 mm |
| Hoogte (zonder voet ): | 559.8 mm |
| Breedte ( zonder voet ): | 965.5 mm |
| Gewicht (zonder voet): | 8400 g |
| On Screen Display (OSD)-talen: | ENG,ESP,FRE |
| Digitale audio, optische uitgang: | 1 |
| Soort tuner: | Analoog & digitaal |
| Formaat digitaal signaal: | ATSC,DVB-C,DVB-S2,DVB-T,DVB-T2 |
| Ingebouwde audio decoders: | Dolby Digital Plus |
| Geluidsmodi: | Dolby Audio |
| Webbrowser: | Ja |
| Breedte apparaat (met standaard): | 965.5 mm |
| Diepte apparaat (met standaard): | 205.6 mm |
| Hoogte apparaat (met standaard): | 599.8 mm |
| Gewicht (met standaard): | 8900 g |
| Elektronische TV-gids: | Ja |
| On Screen Display (OSD): | Ja |
| Consumer Electronics Control (CEC): | Anynet+ |
| Aantal RF-poorten: | 2 |
| My Channel-functie: | Ja |
| Technologie voor decoderen van geluid: | Dolby Digital Plus |
| Auto channel search: | Ja |
| Wekker: | Ja |
| Smart modes: | Movie,Natural |
| Energiezuinige modus: | Ja |
| Ondertitelingsfunctie: | Ja |
| USB-klonen: | Ja |
| Contentmanagementoplossing: | Samsung LYNK REACH |
| Marketingnaam dynamische contrastratio: | Mega Contrast |
| Hoeveelheid RJ-12 ports: | 1 |
| Startmenu Hospitality: | Ja |
| Hotelzenderlijst: | Ja |
| ConnectShare (USB): | Ja |
| ConnectShare (HDD): | Ja |
| Afstandsbediening inbegrepen: | Ja |
| Veiligheidsmodus: | Ja |
| Wifi: | Ja |
| AC-ingangsspanning: | 110 - 120 V |
| AC-ingangsfrequentie: | 50 - 60 Hz |
| Stroomverbruik (typisch): | 51 W |
| Ingeschakelde stand: | Ja |
| Back-up klok: | Ja |
