CAUTION : Two people are required to lift the dryer on to
the washer.
WARNING : These washer and dryer are not suitable for
mobile home or RV installation.
Dryer
STEP 1 Have two persons place the dryer on a non-slippery
floor. Then, have one person tilt the dryer to the side.
Do not lay the dryer down. The dryer may be scratched.
STEP 2-1 SKK-7*, SKK-8*: Check if the legs are tightened up,
and then insert the stacking support guides in the
rectangular holes of the dryer’s base until you hear a
clicking sound. You don’t need to remove the legs.
STEP 2-2 SKK-BB: Disassemble legs, and Snap the stacking
support guides into the rectangular holes in the dryer
base and secure each with two(2) screws Phillips-pan
head (6006-001174)
STEP 3 Repeat the same step above on the other side.
STEP 4 Bottom view of the dryer after assembling the Stacking
Support Guides to the dryer base.
* Use a stacking-kit compatible with the purchased model.
Washer (Stacking kit: SKK-7*, SKK-8*, for 27” models)
CAUTION : You need to use the proper rear bracket
depending on your washer model. (There are 2 different
rear brackets : DC61-04160A, DC61-04955A)
5-1) DC61-04160A : WF5*K**, WF4*H**, WF4*K**, WF4*M**,
WF4*N**, WF18H**, WF20H**, WF20M**, WF22H**,
WF22K**, WF15K**, WF16J65**
Left Right
DO NOT TIGHTEN SCREWS COMPLETELY
STEP 5-1 LOOSELY assemble the Rear Brackets
(DC61-04160A) to the washer as shown below. Use
two (2) Screws-Hex Head (6002-001431) with washers
(DC60-00044A) in each washing machine Top Cover tail,
per bracket.
* Before installing the rear bracket, loosen two screws
(Screw-Hex) on the Cover Top that is secured to the frame.
5-2) DC61-04955A : WF5*R**, WF4*R**, WF5*T**, WF4*T**,
WF2*R**, WF1*R**, WF2*T**, WF1*T**
Left Right
DO NOT TIGHTEN SCREWS COMPLETELY
STEP 5-2 LOOSELY assemble the Rear Brackets (DC61-04955A)
to the washer as shown below. Use two (2) Screws-Hex
Head (6002-001431) with washers (DC60-00044A) in
each washing machine Top Cover tail, per bracket.
* Before installing the rear bracket, loosen two screws
(Screw-Hex) on the Cover Top that is secured to the frame.
Washer (Stacking kit: SKK-BB, for 30” models)
WF56H**
STEP 5-3
Loosely assemble the Rear Bracket (DC61-03846A) to
the washer as shown above in either case A or Case B,
Use (2) Screws-Hex Head (6009-001476) with washers
(DC60-00044A) to the each hole of Cover Top and Frame.
* Case A only : Before installing the rear bracket, loosen two screws
(Screw-Hex) on the Cover Top that is secured to the frame.
Case A Case B
Small Cap Big Cap

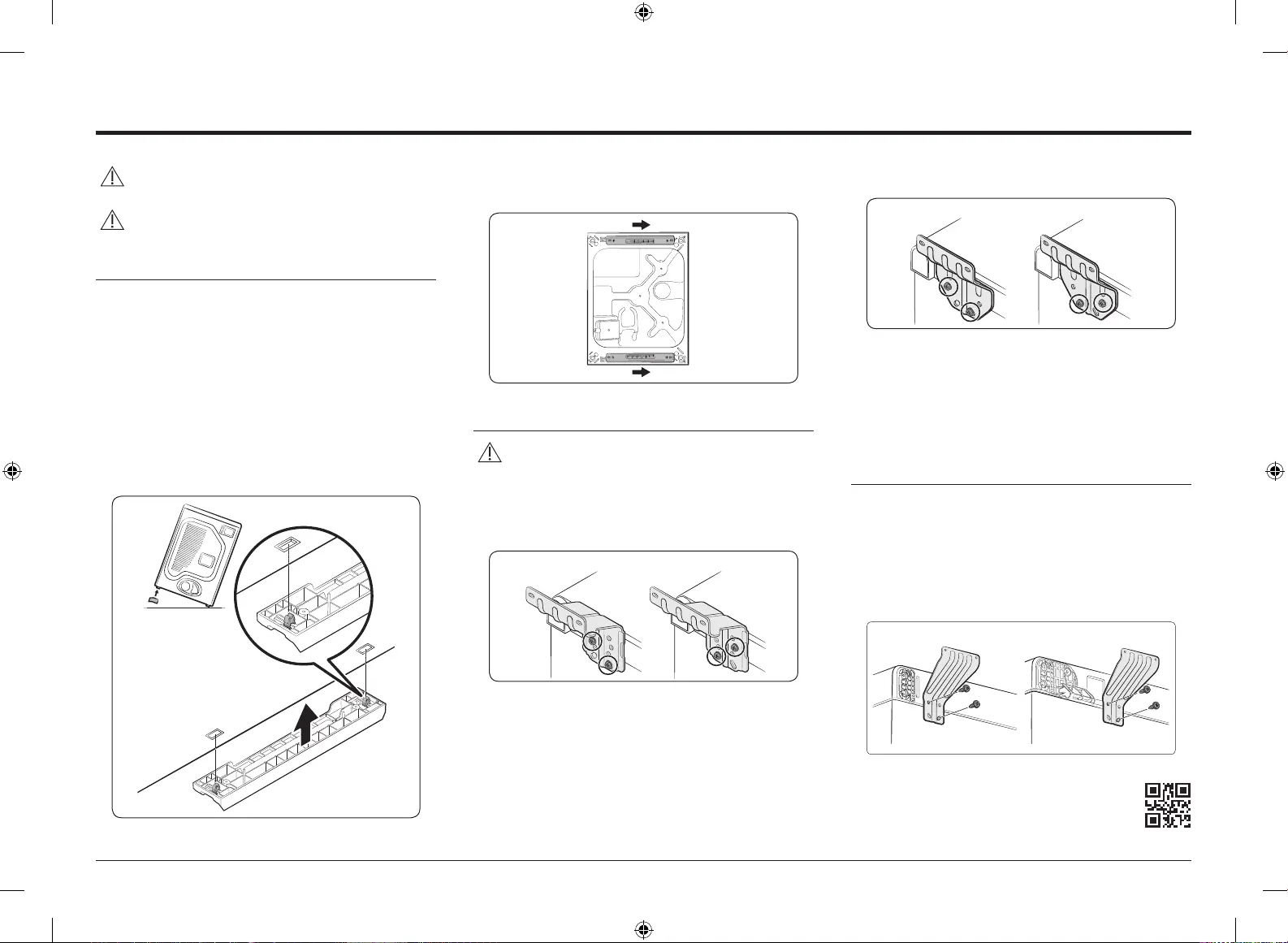

STACKING KIT INSTALLATION INSTRUCTIONS (WASHER & DRYER ONLY)
DC68-01052R-11
StakingKit_DC68-01052R-11_EN.indd 1 2020-10-14 5:38:37
