Shock
Cartridge
Shock shaft
E-clip
Shock Piston
Shock shaft
E-clip
Shock cartridge
Oring P3 2.8x1.9 Shock
cartridge
C-clip Shock
cartridge
C-clip
Spacer
Shock cartridge cap
Oring P3 2.8x1.9
Oring S9 8.5x1.5
Push up spring and attach
Shock spring
Rubber bump stop
Shock end
By screwing the hex cap screw
a little tightly or loosely, the internal
pressure of cylinder can be adjusted.
Spring cup
Decal
Oring S7 6.5x1.5
Oring
S7 6.5x1.5
Oring S7 6.5x1.5
Piggy-back
piston
Please be careful with the
position of oring
Oring S9 8.5x1.5
Shock body
Oring 3x1
Aeration screw
Allen wrench 2.5mm
*Allen wrench
is not included.
Piggy-back shock cap
(O) (X)
Please be careful with the position of oring
Shock end
Ball joint
While pushing down the piggy-back
piston, press in shock piston slowly
all the way to bottom.
While pusing in both the
piggy-back piston and shock shaft,
tighten cartridge slowly.
Fill in the shock cylinder with oil
in proper amount and wait until
the piggy-back cylinder will be
lled with oil.
When oil is full in the piggy-back
cylinder, push in piggy-back piston
into the piggy-back cylinder.
Fill the shock cylinder with oil
to top of thread.
(X)
(O)
Please be careful with the position of
shock piston & piggy-back piston.
Piggy-back spring
Piggy-back bushing
Please be careful with the position of screw
M4x15 hex cap screw
Piggy-back
body
Oring P4 3.8x1.9

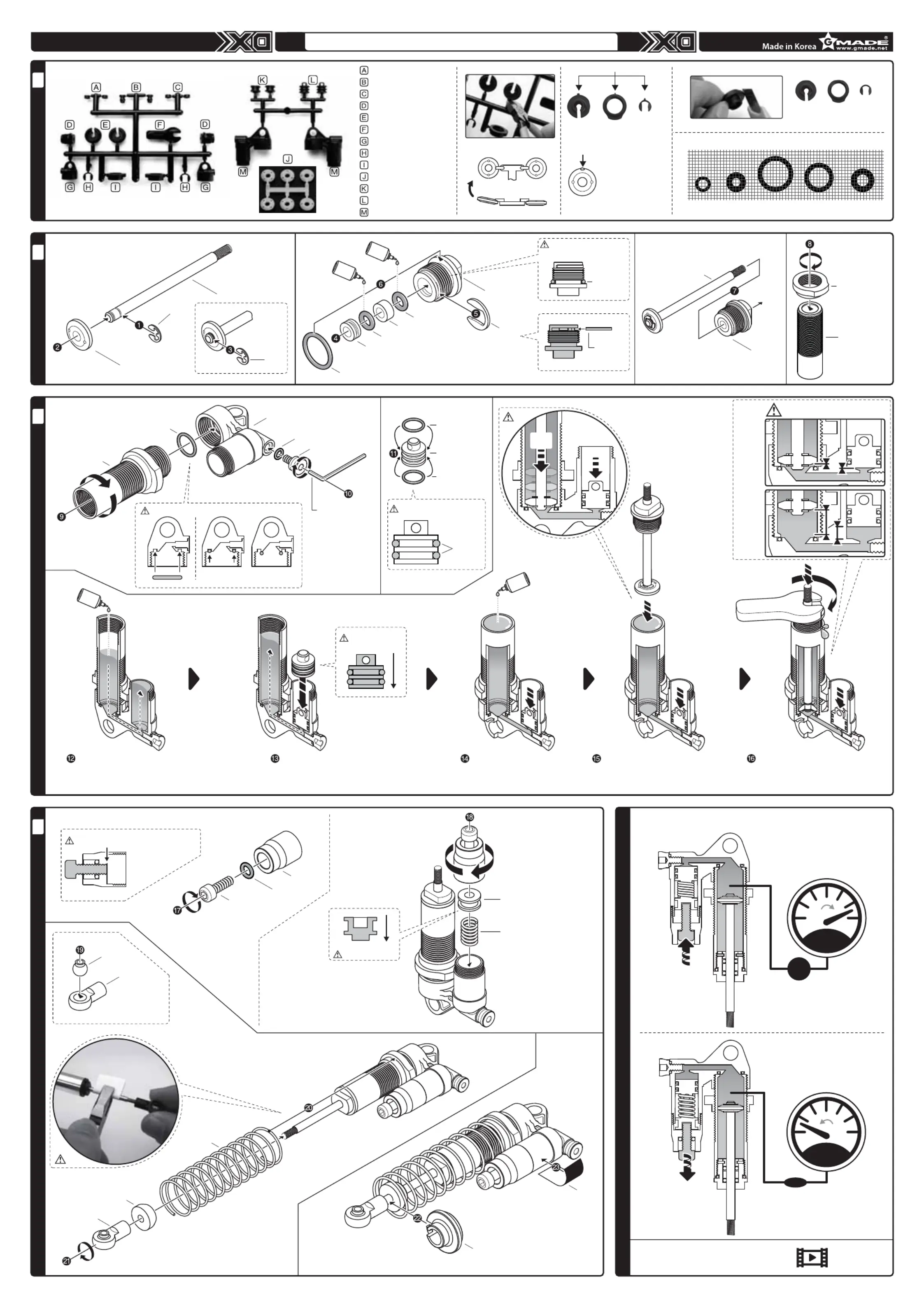

PIGGY-BACK SHOCK ASSEMBLY INSTRUCTIONS
Shock
adjustment nut
Shock body
Video manual
www.gmade.net
Please be careful
with the direction.
Please be careful
with the direction.
PSI
HL
PSI
HL
For any inquiry or detailed assembly explanation,
Please visit our Gmade website.
Push
Slowly
Push
0
5
10
Oring
S9 8.5x1.5
Be careful with the
position of oring
